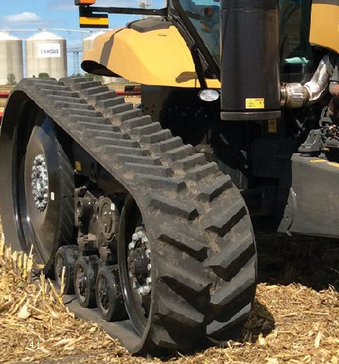

Agco MT700 24"
Camso 4500 Series (General Ag)
Durabuilt part# F24AR02868
MT700 Compatible Models:
MT735, MT745, MT745B, MT745C, MT755, MT755B, MT755C, MT755D,
MT755E, MT765, MT765B, MT765C, MT765D, MT765E, MT775E
Technical Specifications
|
AVAILABLE SIZES
|
|
16 in (406 mm)
18 in (457 mm)
25 in (635 mm)
24 in (610 mm)
30 in (762 mm)
34 in (864 mm)
|
|
TREADBAR HEIGHT
|
|
2.7 in (68 mm)
|
|
TREADBARS
|
|
46* & 92
|
|
TREADBAR TIP WIDTH
|
|
1.6 in (40 mm)
|
|
TREADBAR PITCH
|
|
7.8 in (198 mm)
|
|
GUIDE LUGS
|
|
46
|
|
GUIDE LUG LENGTH
|
|
4.7 in (120 mm)
|
|
CARCASS THICKNESS
|
|
1.45 in (37 mm)
|
* 16 in tracks;
diagonal design
Camso 4500 Series (General Ag)
The 4500 Series track provides
optimum flotation, traction, and track
life for most applications. This
all-purpose trackperforms well in a
wide range of conditions.
This design is equipped with 46, 4.7
inch (120 mm) long guide lugs and
92, 2.7 inch (68.5 mm) tall treadbars.
These features work together to
provide an excellent ride with superior
track alignment, traction and selfcleaning
in wet or sticky conditions.
Camso 4500 Series were designed
to reduce cost of operation by
increasing the life of the track
carcass. The Camso 4500 Series
tracks have an improved carcass
construction providing improved
protection of the main cables and
support of the track. The guide
lugs were also improved, providing
an improvement in guide lug life
and appearance.
To maximize track life and improve
self-cleaning capabilities on narrow
tracks, two treadbar patterns are
offered. The 16 inch (406 mm) track
width uses a diagonal pattern with
treadbars running the width of the
track. All wider tracks use the chevron
treadbar pattern.
Track Series vs. Application Matrix
|
APPLICATION/OPERATION DESCRIPTION
|
CAMSO 2500
|
| Soil Types |
Hard packed clay |
Not recommended |
Silt/loam |
Recommended |
Sticky and wet ground conditions |
OK to use |
Gumbo |
OK to use |
Rocky/Abrasive |
Not recommended |
Gravel |
Not recommended |
Sandy |
OK to use |
Snow/Ice |
OK to use |
| Field Conditions |
Minimal ground disturbance/Berming |
OK to use |
Extreme cold |
Recommended |
In furrow applications |
Not recommended |
Short fields, applications requiring a lot of turning |
Not recommended |
Flat land farming, slopes up to 10% |
Recommended |
Moderate side slope applications, slopes from 10 to 25% |
Recommended |
Severe side slope applications, slopes greater than 25% |
Recommended —4500Series Side Slope Only |
| Road Travel |
Small amount of roading, most field and travel distances within 5 mile radius |
Recommended |
Moderate amount of roading, most field and travel distances between 5 and 10 mile radius |
Recommended |
High amount of roading, typically travel in excess of 10 miles |
OK to use |
| Crop Types |
Wheat/Cereal grains |
Recommended |
Corn/Sorghum |
Recommended |
Soybeans |
Recommended |
Alfalfa/Grasses/Switchgrass |
Recommended |
Cotton |
OK to use |
Sunflowers |
OK to use |
Rice |
Recommended |
Sugarcane |
OK to use |
Sugar beets |
OK to use |
Vegetables |
Not recommended |
| Applications |
Primary tillage (deep ripping, chisel plow, etc. |
Recommended |
Secondary tillage (field cultivator, disk, roller,etc. |
Recommended |
Fully mounted roll over plow |
Not recommended |
Row crop planter |
Recommended |
Air seeder |
Recommended |
Manure tank |
OK to use |
Grain cart |
Recommended |
Tile plow |
Not recommended |
Spraying |
Recommended |
Hay baling |
Recommended |
Stalk chopper/Brush hog |
OK to use |
Vegetable bedder |
Not recommended |
Front blade — Silage |
Not recommended |
Forage harvester |
Recommended |
Snow grooming |
Recommended |
Agricultural scraper |
Not recommended |
Commercial scraper |
Not recommended |
Forestry |
Not recommended |
Non-agricultural applications |
Not recommended |
